Specifications

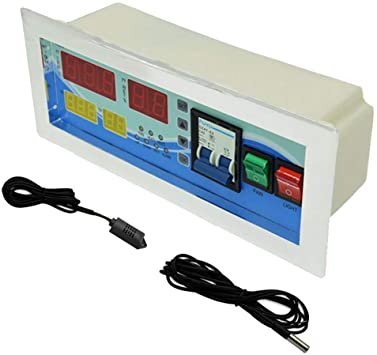

Model: XM-18D
Dimensions: Approximately 20 x 14 x 12 cm (7.87 x 5.51 x 4.72 inches)
Applicable Incubator Capacity: Suitable for incubators holding between 24 to 5,280 eggs
Temperature Measurement Range: 0 to 99.9°C
Temperature Measurement Accuracy: ±0.1°C
Humidity Measurement Range: 0 to 99% Relative Humidity (RH)
Humidity Measurement Accuracy: ±3% RH
Egg Turning Parameters:
Maximum Recorded Turns: Up to 999 times
Egg Turning Cycle: Adjustable from 0 to 999 minutes (factory default is 90 minutes)
Egg Turning Duration: Adjustable from 0 to 999 seconds (default is 180 seconds)
Ventilation Parameters:
Ventilation Cycle: Adjustable from 0 to 999 minutes (default is 120 minutes)
Ventilation Duration: Adjustable from 0 to 999 seconds (default is 15 seconds)
Temperature Sensor Cable Length: Approximately 1.5 meters
Number of Signal Outputs: Seven (over-temperature, temperature control, insufficient temperature, egg left turn, egg right turn, humidity control, alarm)
Working Voltage: AC 160V to 240V, 50Hz
Operating Environment:
Relative Humidity: Less than 85%
Ambient Temperature: -10°C to 60°C
