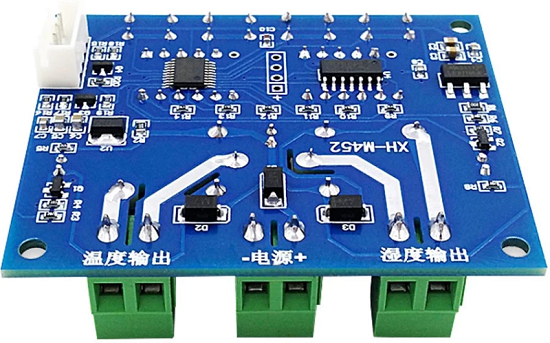

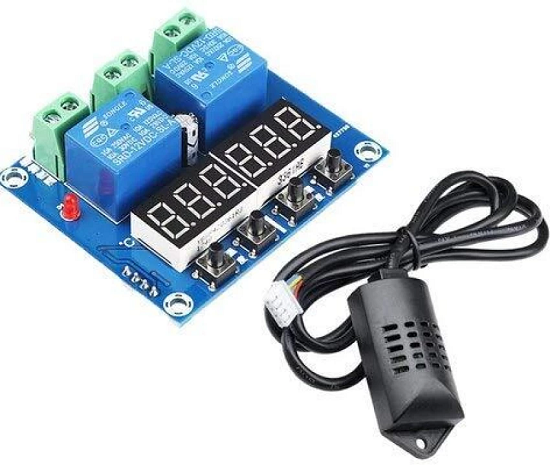

XH-M452 is a digital temperature and humidity controller designed for applications such as incubators, hatcheries, and environmental chambers. It offers precise control over both temperature and humidity, featuring dual relay outputs for independent control of heating and cooling systems, as well as humidifiers and dehumidifiers.
Power Supply: Operates on a 12V DC input.
Temperature Control:
Range: -40°C to +60°C.
Resolution: 0.1°C.
Accuracy: ±0.5°C.
Humidity Control:
Range: 0% to 99.9% RH.
Resolution: 0.1% RH.
Accuracy: ±3% RH.
Sensor: Includes an AM2120 temperature and humidity sensor with a 36-inch (90 cm) cable.
Relay Outputs:
Type: Relay switches.
Ratings: Up to 10A at 120VAC or 10A at 15VDC.
Operating Current:
Inactive Relays: Approximately 40mA.
Active Relays: Approximately 100mA.
Dimensions: 65 mm x 56 mm x 19 mm.
Sensor Cable Length: 90 cm.
Range: -40°C to +60°C. Resolution: 0.1°C. Accuracy: ±0.5°C.
Humidity Control:
Range: 0% to 99.9% RH. Resolution: 0.1% RH. Accuracy: ±3% RH.
Sensor: Includes an AM2120 temperature and humidity sensor with a 36-inch (90 cm) cable.
Relay Outputs:
Type: Relay switches. Ratings: Up to 10A at 120VAC or 10A at 15VDC.
Operating Current:
Inactive Relays: Approximately 40mA. Active Relays: Approximately 100mA.
Dimensions: 65 mm x 56 mm x 19 mm.
Sensor Cable Length: 90 cm.
