ATmega328P Microcontroller

• Manufacturer: Microchip Technology


• Architecture: 8-bit AVR RISC


• Clock Speed: 16 MHz


• Flash Memory: 32 KB (with 0.5 KB used by the bootloader)


• SRAM: 2 KB


• EEPROM: 1 KB


• Operating Voltage: 5V


• GPIO Pins: 23 (14 Digital I/O, 6 Analog Input, 3 PWM-capable)


• Communication Interfaces:



  • UART (Serial Communication)


  • I2C (TWI)


  • SPI (Serial Peripheral Interface)

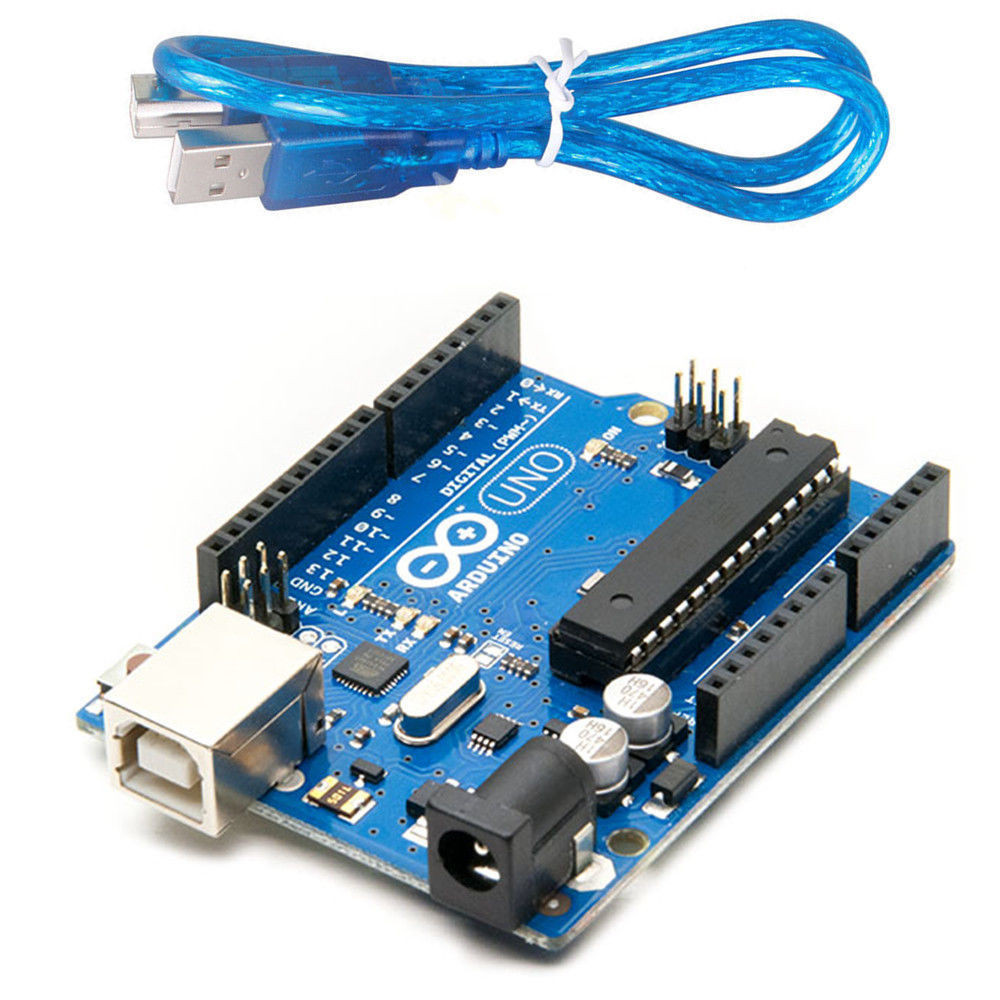

2. Arduino Uno Board

• Power Supply:



  • USB (5V)


  • External Power (7-12V recommended)






• Voltage Regulator: Onboard 5V and 3.3V regulators


• Built-in LED: On Pin 13


• Reset Button: Available for restarting the program


• USB-to-Serial Converter: Uses ATmega16U2 (older versions used FTDI chip)


• Programming Interface: Uses Arduino IDE with a bootloader pre-installed on ATmega328P

3. Features & Uses

• Ease of Use: Beginner-friendly, requires minimal hardware setup.


• Programming Language: Uses a simplified version of C++ (Arduino IDE).


• Interfacing Options: Supports sensors, motors, LCDs, and other modules.


• Common Applications:



  • Robotics


  • Home automation


  • IoT (Internet of Things)


  • Wearable technology


  • Educational projects
