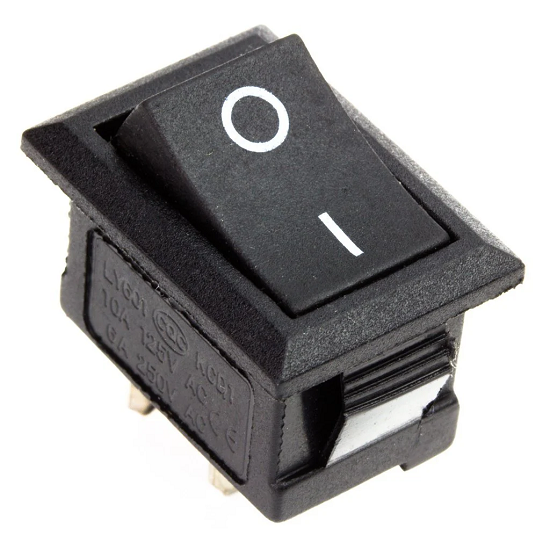

15x21mm rocker switch, commonly referred to as the KCD1 model, is widely used in electronic applications for its compact size and reliable performance.
Dimensions: 15mm x 21mm
Rated Voltage and Current:
6A at 250VAC
10A at 125VAC
Contact Configuration:
Single Pole Single Throw (SPST) with 2 pins
Double Pole Single Throw (DPST) with 4 pins
Switch Operation: ON-OFF
Mechanical Life: Over 10,000 cycles
Operating Temperature Range: -20°C to 85°C
