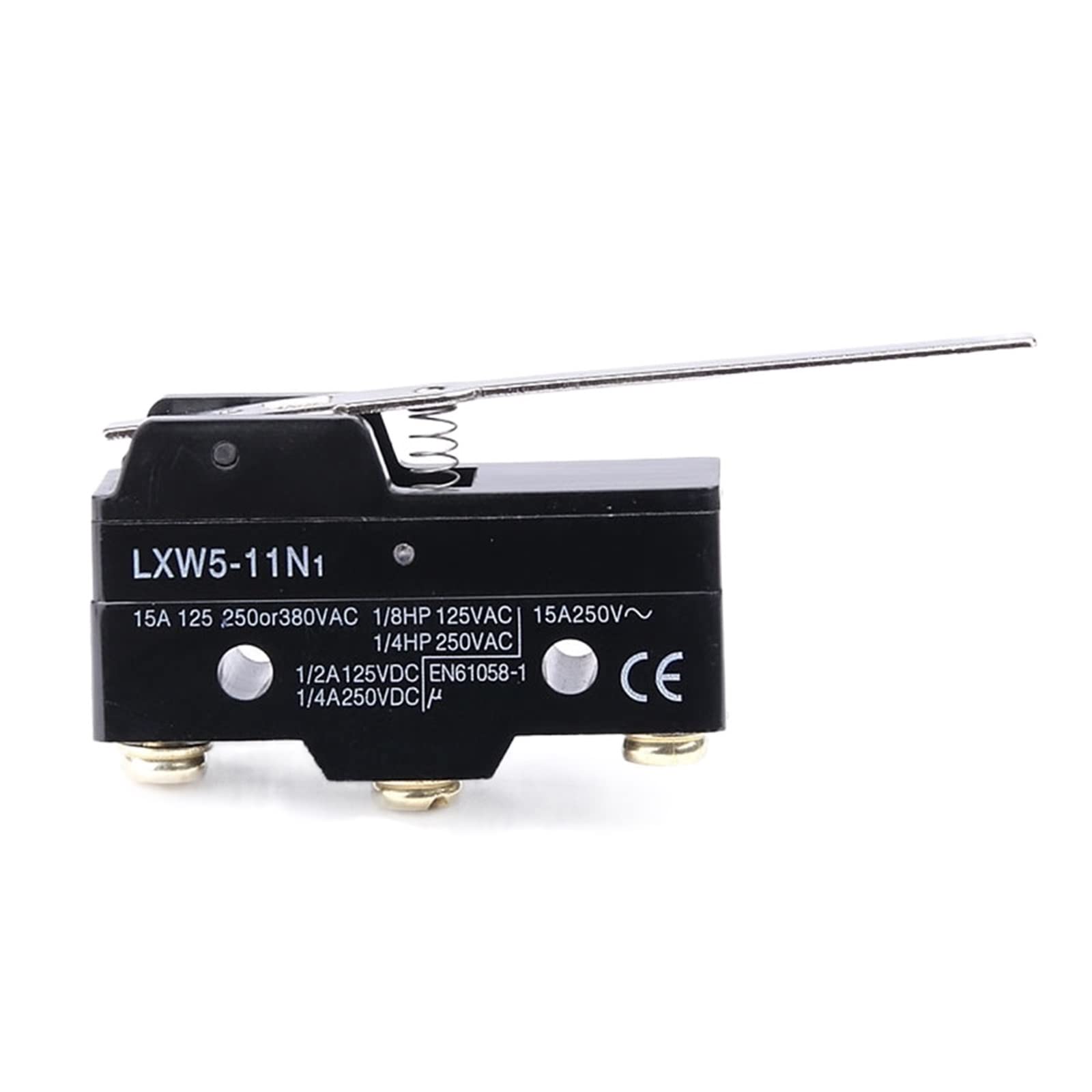

LXW5-11N1 is a micro limit switch commonly used for position detection in various mechanical and industrial applications. Below are its key specifications:

Electrical Specifications:

Contact Configuration: Single Pole Double Throw (SPDT) with one Normally Open (NO) and one Normally Closed (NC) contact.
Rated Voltage: Up to 380V AC or 220V DC.
Rated Thermal Current (Ith): 10A.
Contact Resistance: Maximum of 30 milliohms (initial value).
Insulation Resistance: Minimum of 100 megohms at 500V DC.

Dielectric Strength:

1000V AC, 50/60 Hz for 1 minute between terminals of the same polarity.
2000V AC, 50/60 Hz for 1 minute between current-carrying metal parts and ground.
2000V AC, 50/60 Hz for 1 minute between each terminal and non-current-carrying metal parts.

Mechanical Specifications:

Actuator Type: Hinge lever.
Operating Force: Ranges from 0.3 to 0.8 Newtons.
Reset Force: Greater than 0.15 Newtons.
Mechanical Life: Minimum of 20 million operations.
Electrical Life: Minimum of 500,000 operations.

Environmental Specifications:

Operating Temperature: -25°C to 80°C.
Operating Humidity: 35% to 85% Relative Humidity (RH), non-condensing.
Protection Rating: IP62, indicating protection against dust and limited ingress of water.

Physical Specifications:

Mounting Type: Panel mount with screw terminals.
Switch Body Dimensions: Approximately 50mm x 18mm x 30mm (Length x Width x Height).
Lever Length: Approximately 70mm.
