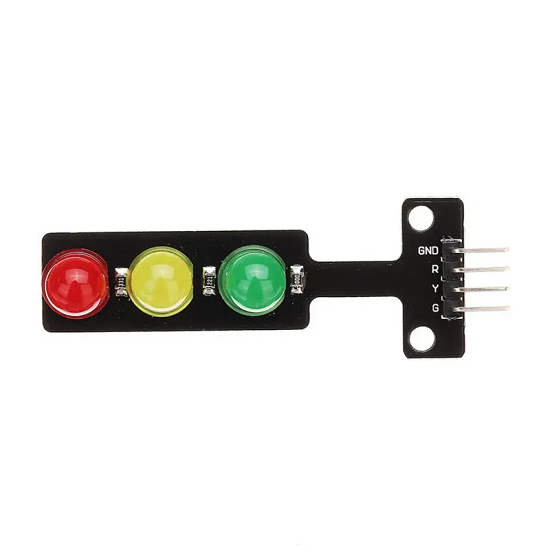

5V LED Traffic Light Module is commonly used in electronics projects, Arduino experiments, and traffic light simulations
Operating Voltage: 5V DC
LED Colors: Red, Yellow (Amber), Green
LED Diameter: 5mm (typically)
Current Consumption: ~20mA per LED
PCB Dimensions: Varies, but usually around 50mm x 20mm
Control: Can be controlled using microcontrollers like Arduino, Raspberry Pi, etc.
Pins:
VCC (5V): Power supply
GND: Ground
Red Pin: Controls the Red LED
Yellow Pin: Controls the Yellow LED
Green Pin: Controls the Green LED
Working Principle: Each LED is individually controlled by a signal from a microcontroller or external circuit.
Applications:
Traffic Light Simulations
DIY Electronics Projects
Arduino and Raspberry Pi Prototyping
Educational Purposes
