Transistor Type: NPN

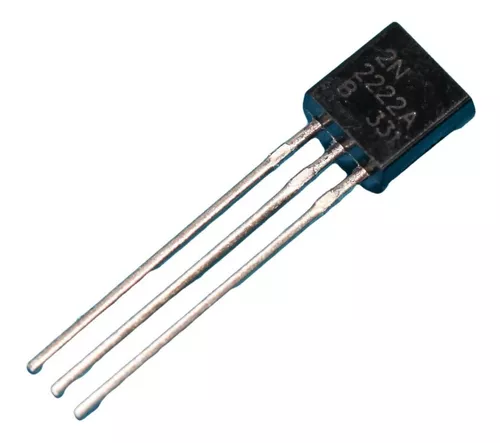

Package Types: TO-18 (metal can), TO-92 (plastic)
Application: Switching and amplification
Polarity: NPN
Collector-Emitter Voltage (V_CEO): 40V (max)
Collector-Base Voltage (V_CBO): 75V (max)
Emitter-Base Voltage (V_EBO): 6V (max)
Collector Current (I_C): 800mA (max)
Power Dissipation (P_tot): 500mW (TO-92 package)
DC Current Gain (h_FE): 35 to 300 (depending on operating conditions)
Transition Frequency (f_T): 250 MHz (typical)
Saturation Voltage (V_CE(sat)): 0.3V to 0.6V (at I_C = 10mA - 800mA)
Junction Temperature (T_J): -55°C to 150°C
Storage Temperature (T_stg): -55°C to 150°C

Pin Configuration (TO-92 Package):

Emitter (E) – Connected to ground (for typical common-emitter circuits)
Base (B) – Controls the transistor (small current at the base controls larger collector current)
Collector (C) – Connected to the load in a switching or amplification circuit

Applications:

Signal amplification
Low-power switching circuits
Oscillators and signal processing
LED drivers
Logic circuits
