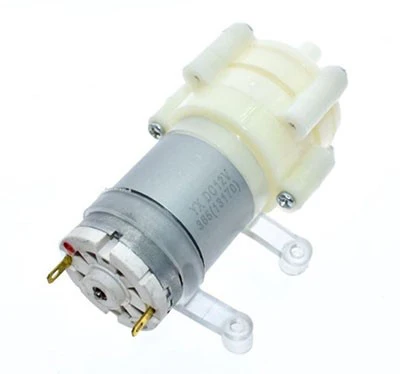

365 DC Pumping Motor is a miniature diaphragm pump commonly used in applications such as water dispensers, tea stoves, and small-scale fluid transfer systems.
Operating Voltage: 12 V DC
No-Load Current: 0.23 A
Load Current: 0.45 A
Flow Rate: 2–3 liters per minute
Maximum Outlet Pressure: 1–2.5 kg/cm²
Maximum Lift (Head): 1–2.5 meters
Maximum Suction Height: 2 meters
Inlet/Outlet Pipe Diameter: 8 mm
Dimensions: 69 mm (length) x 40 mm x 35 mm
Motor Dimensions: 32 mm (length) x 28 mm (diameter)
Weight: Approximately 111 grams
